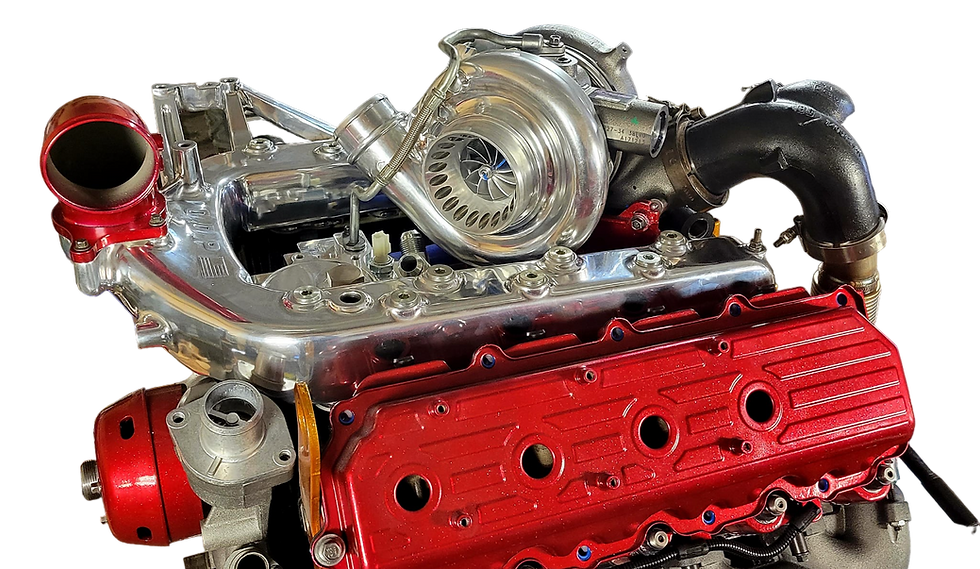

RDP Stage 4.0 - 6.2L Powerstroke Engine Longblock

STAGE 4 LONGBLOCK-  $17,500.00
STAGE 4 WITH ORINGED HEADS -  $18,500.00

INCLUDES ALL PREVIOUS STAGES PLUS THE FOLLOWING:
(see below for all stage info)

- Brand new High Pressure Oil Pump, and Updated Fitting + all New Seals / Orings Installed.

* STAGE 1 INCLUDES:
- Block is hot tanked, cleaned, inspected, shot peened, new oil galley plugs installed.
- Full blueprint machining (bore, deck, hone, and align honed)
- Block Bored .40 Over
- New Mahle Pistons and Rings
- New Mahle Rod, Main, and Cam Bearings
- ICS Stage 2 Custom Ground Billet Performance Camshaft
- Micropolished Crank / Custom Machining
- New OEM Ford Rods
- New Bedplate Gasket
- Glass Beaded Rear Cover, Front Cover, and Oil Pan Girdle
- Upper and Lower Oil Pan Gasket's (Added Bead of Silicone)
- Oil Pan Included
- Rear Engine Cover Installed with New Rear Main Seal and Rear Cover Seal
- Front Cover Installed with New Front Cover Gasket
- NEW Melling High Volume LPOP Gear's and Seal / O-Ring Kit and Regulator Spring
- OEM Head Gaskets
- NEW Head Studs
- FULLY Rebuilt 6.0L Powerstroke Heads. Pressure tested, Magged, New Valve Guides, Seats, Valve Grind, Stem Seals etc. Gasket Matched Exhaust Ports.
- New HD Lifters
- New Elgin 6.4 Updated Length Pushrods
- Cleaned and Checked Valvetrain installed. Rocker Arms, Valve Bridges etc.
- Rocker Box Glass Beaded. New Gasket (Added Silicone Bead)
- Exhaust Manifolds Surfaced, Cleaned and Painted
- New Exhaust Manifold Gaskets x2

* STAGE 2 INCLUDES:
- New Oil Cooler Kit with all new Gaskets and Updated Filter Screen
- New Camshaft and Crankshaft Position Sensors
- New Glow Plugs
- New Glow Plug Harness's
- New Water Pump / O-Ring

* STAGE 3 INCLUDES:
- 8 Brand NEW OEM Alliant Power Injectors with 2 Year Warranty
- Pair of Tested Oil Rails
- Updated Stand Pipe and Dummy Plugs
- All Installed
